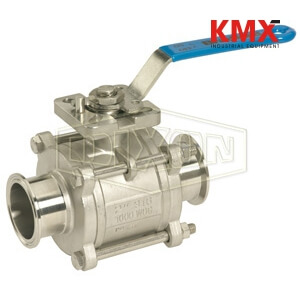

SKU :  9618 MARCA : DIXON VALVE MODELO :  BV2CU-150CC-A

Specifications:
Break torque: 238 in. lbs.

Features:
Balanced encapsulated construction minimizes cold flow
Live-loaded stem packing
Precision stainless steel balls reduce torque and friction losses while extending seat life
Lockable handle can prevent accidental actuation
Standard internal entry blow out proof stem design
Full port design matches ball and seat ports to tube ID for lower pressure drop and less turbulent flow
Compact design for areas with tight space restrictions

Construction:
Ultra-high molecular weight polyethylene seal, Food Grade Material: Specified for its low modulus of abrasion and minimal property degradation when exposed to moderate levels of radiation. Ideal for applications where fluorocarbons are not acceptable.
ID polish is Rₐ 32 minimum
Fully encapsulated construction produces bubble tight seal
Integral ISO 5211 mounting pad

Available Options:
Identification tagging available
304 Stainless steel stem extension available for all sizes when you need distance from insulated lines or need to dissipate heat or cold in your process between the valve and the handle or actuator. Standard extension is 4", but other lengths can be quoted as specials.
Weld ends available see BV2CV-XXXBB-A

Safety notes:
WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov
