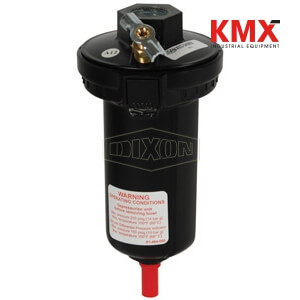

SKU :  26633 BRAND : DIXON VALVE MODEL :  X02-04MB

Features:
Metal bowl
5 oz. bowl
Fully automatic, float operated
Full 1/2" NPT drain inlet
Quick-disconnect clamp ring for easy bowl removal when servicing
No electrical connections
Easily installed

How it works:
As liquid contaminants collect in the bowl, they raise a closed-cell cellular float. When the liquid level reaches a given point, the float triggers a mechanism which pilots line pressure against a large area piston or diaphragm which snaps open the drain valve. The contaminants are discharged from the drain orifice at line pressure. As the liquid level falls, the pilot valve closes, line pressure against the piston/diaphragm returns to atmosphere and the drain valve snaps closed.

Safety notes:
WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov
