DIXON VALVE
DIXON VALVE V16F16 DQC V-Series Snap-Tite H/IH Interchange Valved Female Plug

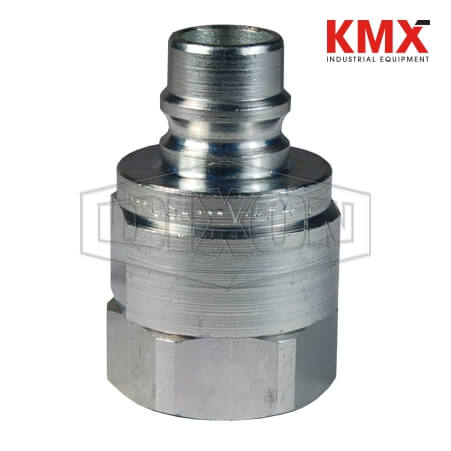

* Referential image

DIXON VALVE
DQC V-SERIES SNAP-TITE H/IH INTERCHANGE VALVED FEMALE PLUG
SKU :  21502 BRAND : DIXON VALVE MODEL :  V16F16
Features:
General purpose hydraulic quick-connect provides superior flow characteristics with built-in reliability

Construction:
Steel nipples are machined from high-strength steel and induction hardened.

Available Options:
Contact Dixon for all available option adders
Standard seal options include: FKM, EPDM, Steam-EP, FDA FKM, Mil-Nitrile, Fuel Nitrile and Silicone
Kalrez® seal options include: 4079, 6375 and 7075
Valve options include: Unvalved, tubular, steel, brass and 316 stainless steel
Sleeve options include: Sleeve-lock, Flanged and Silicone-flanged
Oxy-clean treatment is available

Compatibility & Interchange Data:
Interchangeable to MIL-C-51234
Snap-Tite H and Faster TNV

Safety notes:
WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov
PDF
PRINT
CONTACT US
TECHNICAL SPECIFICATIONS
1Body Size2"
2Burst Pressure4000 PSI (275 bar)
3Factory Part NumberV16F16
4Hex3-1/2"
5Length3.72" (94.5mm)
6MaterialSteel
7Maximum OD3.83" (97.3mm)
8Maximum Operating Pressure1500 PSI (100 bar)
9Temperature Range-40°F to +250°F (-40°C to +121°C)
10ThreadFemale NPTF
11Thread Size2" - 11-1/2
12Weight Lb4.9600
** Some features may vary without prior notice. Sale subject to inventory availability
