| 1 | Body Size | 1/4" |
|---|---|---|
| 2 | Burst Pressure | 20,800 PSI (1,434 Bar) |

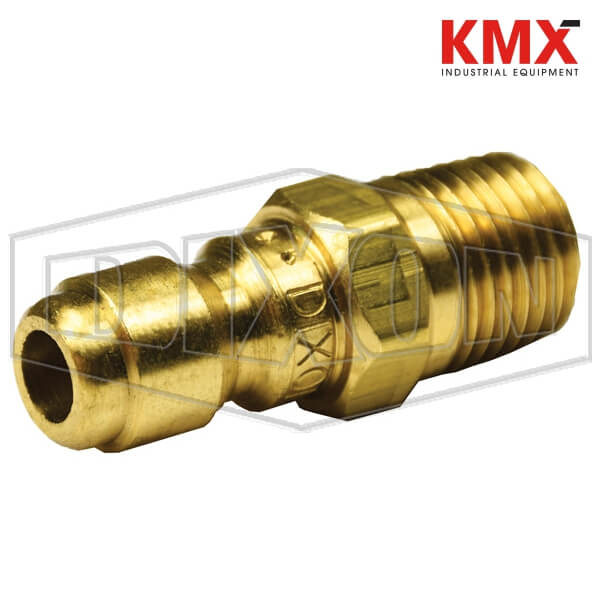

| 3 | Description | 1/4" straight thru nipples (Case Qty 20 Required) |
| 4 | Hex | 9/16" |
| 5 | Length | 1.50 (38.1mm) |
| 6 | Male Thread | NPTF |
| 7 | Male Thread Size | 1/4"-18 |
| 8 | Mandatory Pkg/Box Qty | 20 |
| 9 | Material | Brass |
| 10 | Maximum OD | 0.65 (16.5mm) |
| 11 | Maximum Operating Pressure | 5,200 PSI (359 Bar) |
| 12 | Factory Part Number | PW-E2M2-B |
| 13 | Weight Lb | 0.0500 |
