DIXON VALVE

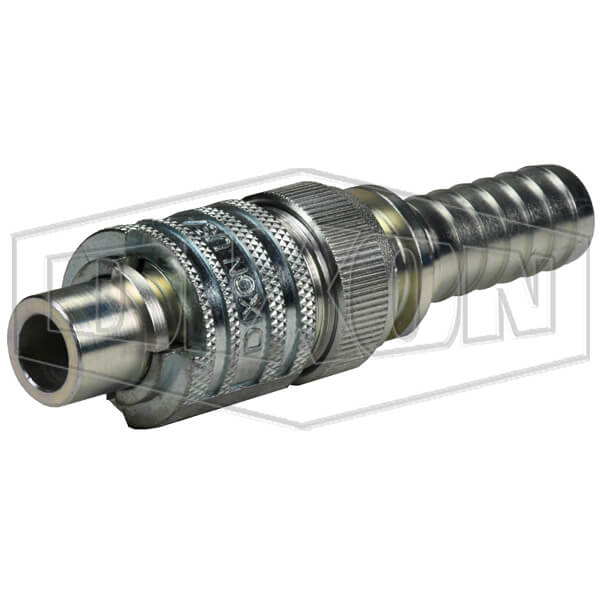

DIXON VALVE N4S6-ZLS Dix-Lock® N-Series Interchange Male End x Hose Barb Safety-Lock Plug
* Referential image

DIXON VALVE
DIX-LOCK® N-SERIES INTERCHANGE MALE END X HOSE BARB SAFETY-LOCK PLUG
SKU :  27580 BRAND : DIXON VALVE MODEL :  N4S6-ZLS
Specifications:
Rated pressure for connected Steel Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 11,000 PSI (755 bar) Burst
Conforms to MIL-C-3486 and A-A-50431A standards
Construction:
Machined components are manufactured using solid bar stock.
Stainless steel retaining ring and spring maximize corrosion resistance and extend service life.
Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Coupling sleeve constructed of cast zinc steel
Steel lock ring
Available Options:
Staked ferrule option available, contact Dixon
316 stainless steel available in some versions upon request, contact Dixon
Compatibility & Interchange Data:
Bowes Interchange Bayonet Style
Interchangeable with Bowes 51000-Series, National Series 'B', MacDonald Quick-Action, Campbell Single-Lock
Safety notes:
WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov
Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov
PDF
TECHNICAL SPECIFICATIONS
1Body Size1/2"
2Hex1-3/8"
3Hose ID3/4"
4Length3.42" (86.7mm)
5MaterialSteel
6Maximum OD1.50" (35.6mm)
7Factory Part NumberN4S6-ZLS
8Pressure RatingSee Product Details
9Temperature Range-40°F to +250°F (-40°C to +121°C)
10Weight Lb0.7500
** Some features may vary without prior notice. Sale subject to inventory availability
