DIXON VALVE

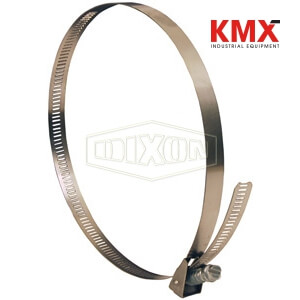

DIXON VALVE LS152 Quick Release Worm Gear Clamp
* Referential image

DIXON VALVE
QUICK RELEASE WORM GEAR CLAMP
SKU :  16324 BRAND : DIXON VALVE MODEL :  LS152
Construction:
Screw design: 5/16" slotted hex head
Band & Housing: 201 Series Stainless Steel
Screw: Plated, Hardened Carbon Steel

Installation
Suggested installation torque 25-35 inch pounds, maximum recommended torque 50 inch pounds

Safety notes:
Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp.
WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov
PDF
TECHNICAL SPECIFICATIONS
1Factory Part NumberLS152
2Hose OD From2" (51mm)
3Hose OD To10" (254mm)
4Material201 Series Stainless Steel
5Width1/2"
6Weight Lb0.1100
7Optional Pkg/Box Qty1
8StyleStyle LS
9Torque50 in. lbs. Maximum
** Some features may vary without prior notice. Sale subject to inventory availability
