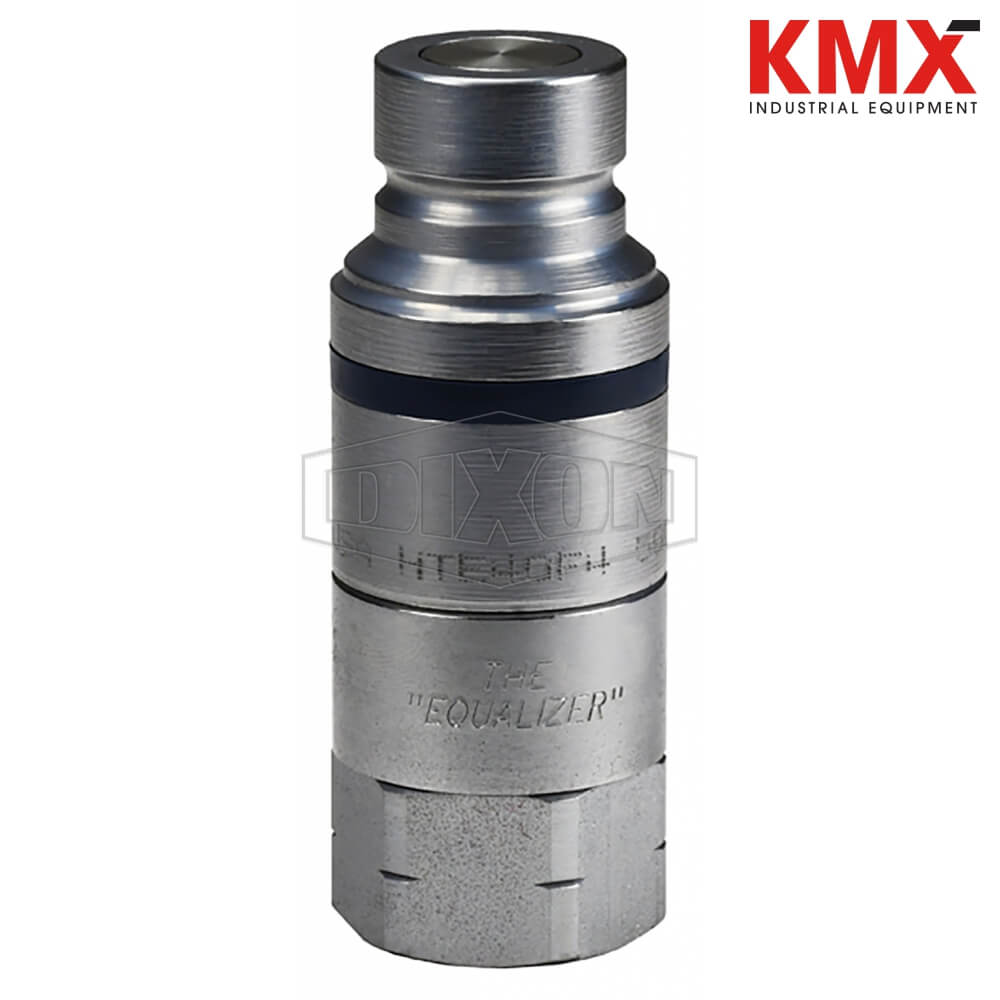

SKU :  15687 BRAND : DIXON VALVE MODEL :  HTE5OF6

Use:
For use with HTZ or HT Series couplers

Specifications:
ISO 16028

Features:
Non-linear connection force at all pressures
No maximum connection-pressure restrictions, up to 5000 PSI
Head pressure or valve bleed-by has minimal effect on connection force
Less susceptible to system contamination
Design is scalable performing similarly in all sizes
Smooth connection action
Connectable with trapped pressure on HTE half only

Construction:
Machined components are manufactured using solid steel bar stock.
Steel componentry is plated using a ROHS Compliant Zinc Nickel process providing superior corrosion resistance.
Stainless steel retaining rings and springs maximize corrosion resistance and extend service life.
Nipples are hardened to provide resistance to brinneling during impulse service.
Nitrile-Energized PTFE valve seals, with a temperature range of-40°F to +250°F (-40°C to +121°C)
Ancillary nipple seals are Nitrile (Buna-N), with a temperature range of-40°F to +250°F (-40°C to +121°C)

Compatibility & Interchange Data:
Parker FEC-Series, Stucchi APM-Series, Faster 3FFH-Series
Conforms to ISO16028

Note:
Flow ΔP = 14.5 PSI
