Dqc Hs-series Iso-b Steam Interchange Female Plug

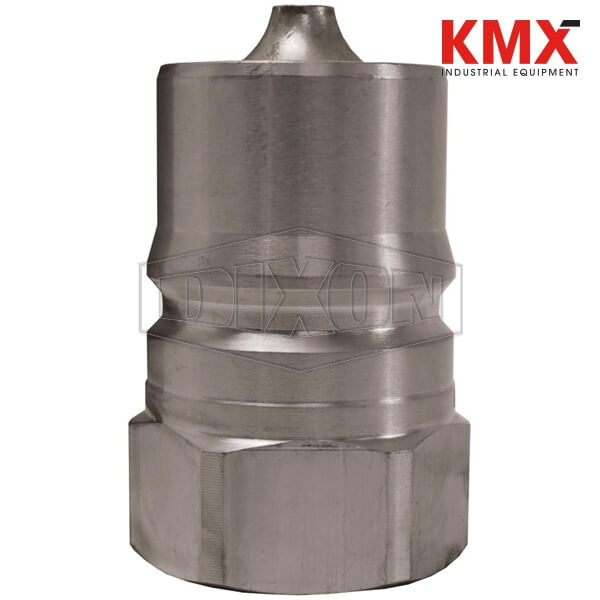

* Referential image

DIXON VALVE

DQC HS-SERIES ISO-B STEAM INTERCHANGE FEMALE PLUG

SKU : 24656 BRAND : DIXON VALVE MODEL : HS8BF8

Applications:
Designed exclusively for steam applications

Construction:
Machined components are manufactured using solid bar stock
Steel nipples are hardened to provide heavy duty performance and resist brinelling.
Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
Special high-temp EPDM O-rings designed for steam service

Compatibility & Interchange Data:
Interchangeable to ISO7241 Series 'B'
Parker 60-Series Steam Couplings

Safety notes:
Maximum working pressure has been calculated using standard saturated steam at 194°C (382°F) for general purpose continuous service. For advanced operating pressure or super-heated steam applications, contact Dixon for further information.
Warning: Do not disconnect under pressure!
WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov

PDF

TECHNICAL SPECIFICATIONS

1	Body Size	1"
2	Factory Part Number	HS8BF8
3	Hex	1-5/8"
4	Length	2.87" (72.9 mm)
5	Material	Steel
6	Maximum OD	1.75" (44.5mm)
7	Pressure Rating	Rated to 200 PSI gauge saturated steam 382°F (194°C)
8	Temperature Range	-70°F to +400°F (-57°C to +204°C)
9	Thread	Female BSPP
10	Thread Size	1"-11
11	Weight Lb	0.3800

** Some features may vary without prior notice. Sale subject to inventory availability
