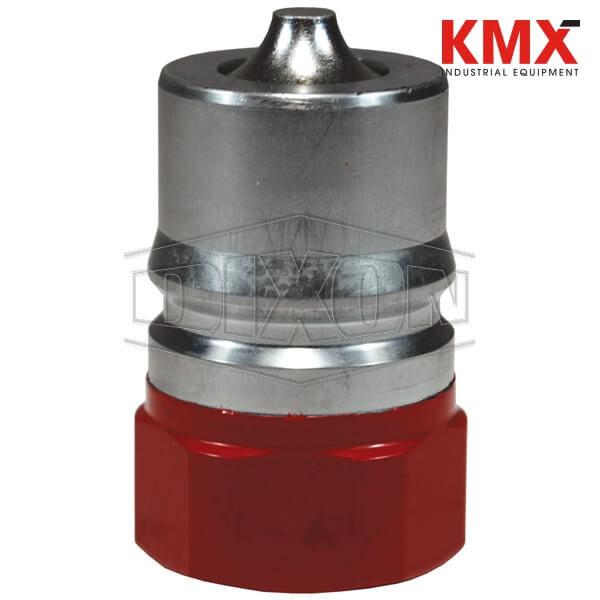

SKU :  24589 BRAND : DIXON VALVE MODEL :  H6F6-SS-BOP

Applications:
Designed specifically for blow-out prevention systems on drilling rigs

Specifications:
BOP couplings have been fire tested and Lloyd's certified to 700°C (1300°F) in accordance with API 16D. Certificate available upon request.
Flow ΔP = 22 PSI
Lloyd's Test Pressure: 5,000 PSI

Construction:
Machined components are manufactured using solid 316 stainless steel bar stock
Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life.
Steel components are plated using ROHS Compliant Trivalent Chrome
Steel nipples are hardened to provide heavy duty performance and resist brinneling.
Red powder coated coupler sleeve for easy BOP service identification, locking sleeve is standard
Blow-out Preventer (BOP) coupling critical seals are severe service FKM
PTFE Anti-Extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection
Individually marked with the BOP series designation

Compatibility & Interchange Data:
Eaton/Hansen HKFR-Series
DNP HNV-BOP Series
Interchangeable to ISO7241 Series B

Safety notes:
WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov
