DIXON VALVE

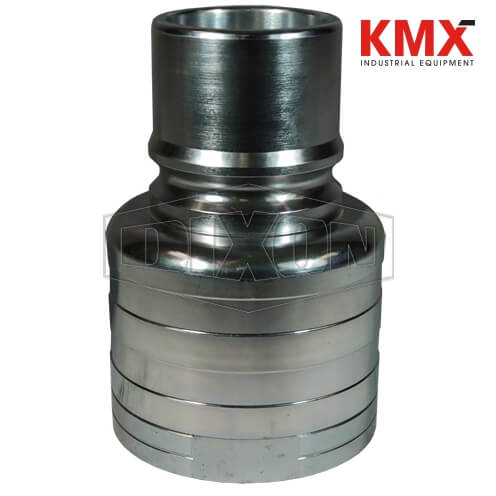

DIXON VALVE H10F10-SS DQC H-Series ISO-B High Volume Female Plug
* Referential image

DIXON VALVE
DQC H-SERIES ISO-B HIGH VOLUME FEMALE PLUG
SKU :  24453 BRAND : DIXON VALVE MODEL :  H10F10-SS
Construction:
Machined components are manufactured using solid bar stock
Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.

Available Options:
Contact Dixon for all available option adders

Compatibility & Interchange Data:
Interchangeable to ISO7241 Series 'B'
Parker 60-Series, Snap-Tite 72-Series, Hansen HK-Series, Faster Series 'HNV', Aeroquip/Eaton FD45, Stucchi Series IRB/IRBO/IRBX

Safety notes:
WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov
PDF
TECHNICAL SPECIFICATIONS
1Body Size1-1/4"
2Burst Pressure8500 PSI (580 bar)
3Factory Part NumberH10F10-SS
4Hex2-3/8"
5Length4.25" (108.0mm)
6Material316 Stainless Steel
7Maximum OD2.60" (66.0mm)
8Maximum Operating Pressure1000 PSI (70 bar)
9Temperature Range-40°F to +250°F (-40°C to +121°C)
10ThreadFemale NPTF
11Thread Size1-1/4" - 11-1/2
12Weight Lb2.1900
** Some features may vary without prior notice. Sale subject to inventory availability
