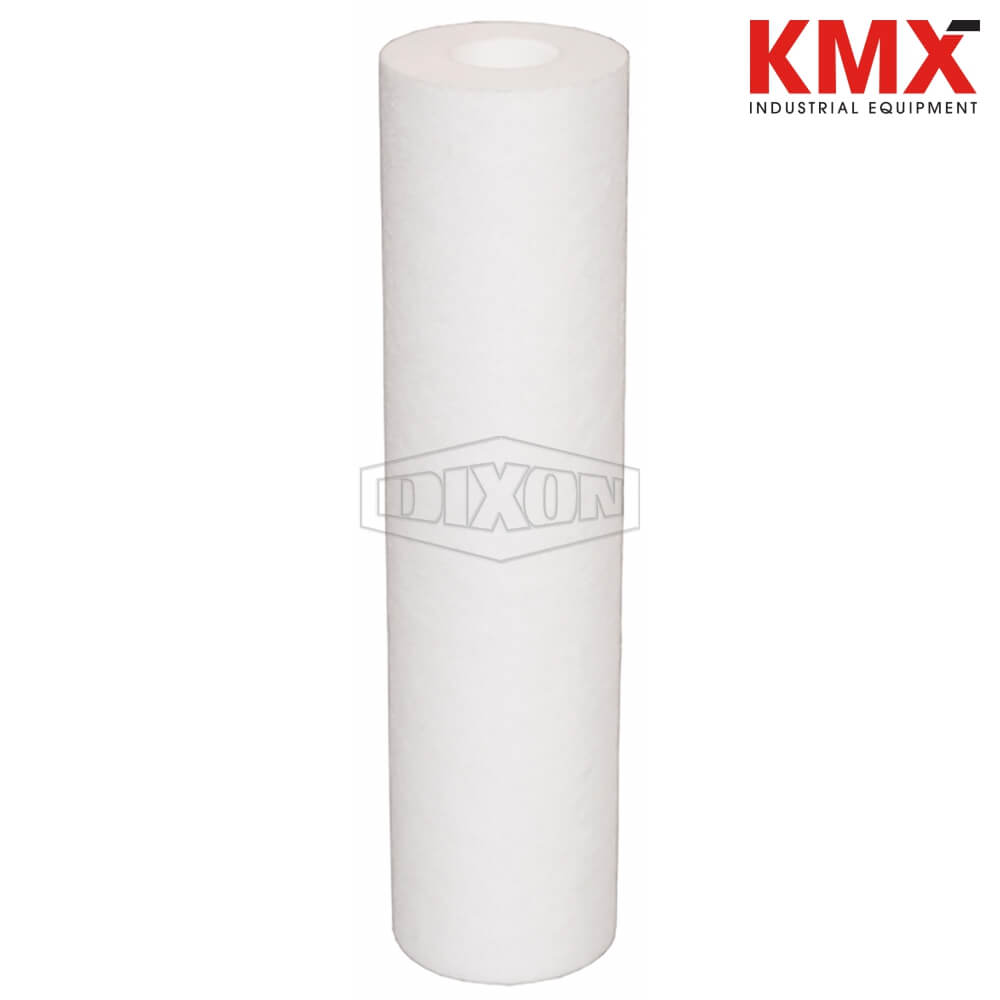

SKU :  11624 BRAND : DIXON VALVE MODEL :  DF-BEKS2S1

Specifications:
Maximum forward differential pressure: 40 PSID (1.7 bar) at 155°F (66°C); 60 PSID (3.4 bar) at 86°F (30°C)
Recommended change out differential pressure: 35 PSID (2.4 bar)
Diameters: 2-1/2" (standard) or 4-1/2"
Cartridge Element Lengths: 9.75" to 50"
Micron ratings: 1, 5, 10, 20, 25, 30, 50, 75, and 100

Features:
FDA title 21 compliant
No glue or binders
Low pressure drop
4-Zone technology within cartridge allows for high dirt loading
Available in industry standard end connections

Construction:
Cartridge element: polypropylene
Gasket/O-Ring: Buna, FKM, PTFE, silicone, neoprene, EPDM and Polyfoam; no selection required for double open ended (DOE) cartridge elements

Note:
Sold in standard case quantities only: 10″ and under are 30pcs/case; 19½″ thru 30″ are 15pcs/case; 39″ and above are determined at time of quote
There are many more options, including industrial housing and cartridge elements. All cartridge elements are manufactured to industry standards and are interchangeable with other manufacturers’ products. Please call Dixon Sanitary 800.789.1718 for further information.

Safety notes:
WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov
