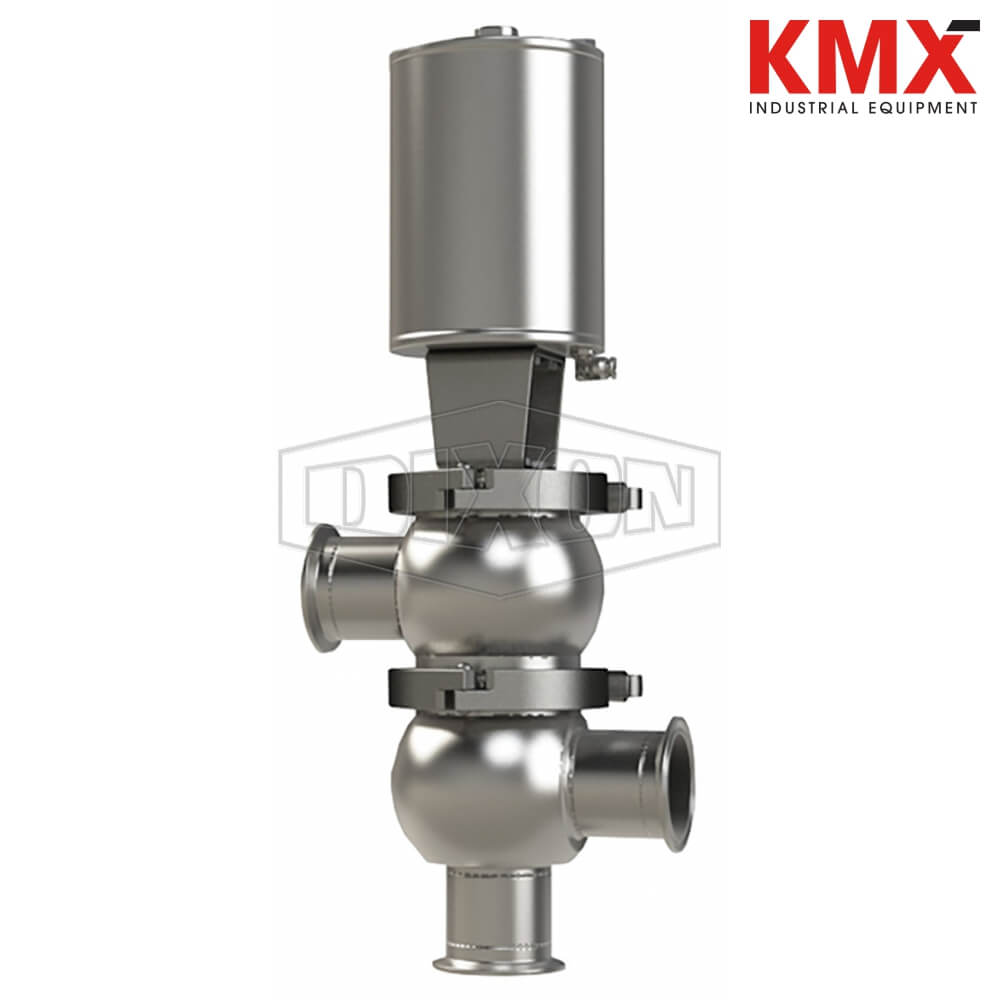

SKU :  10676 BRAND : DIXON VALVE MODEL :  D05A40C1EE

Applications:
Used in sanitary processes for the diversion of fluids. These valves are found in the food processing, beverage, dairy, personal care, winery, brewery, and pet product markets.

Specifications:
Maximum holding pressure: See below Holding Pressure Chart as they are dependent upon size and configuration of the valve.
Maximum operating temperature: 266°F (130°C)
Surface ID finish: < 32Rₐ
Maximum sterilization temperature (20 min/max): 275°F (135°C)
Elastomers are FDA and 3A compliant
Sizes: 1" to 4"

Construction:
All product contact steel components: 316L stainless steel
All non-product contact steel components: 304 stainless steel
Products wetted seal elastomers: FKM or EPDM
Stem seal materials: FKM, EPDM or PTFE

Available Options:
Clamp and weld connections standard, other types available upon request
Available with a pneumatic actuator or manual handle
Burkert™ Control Top Model No.s 8691, 8681, and 8692 are available. See below Part Number Key for configurations available.
Optional 15Ra, 20Ra or 25Ra finishes available.

Safety notes:
WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov

Approvals
3A- authorization number 1655, 53-06 (compression-type valves)
