DIXON VALVE

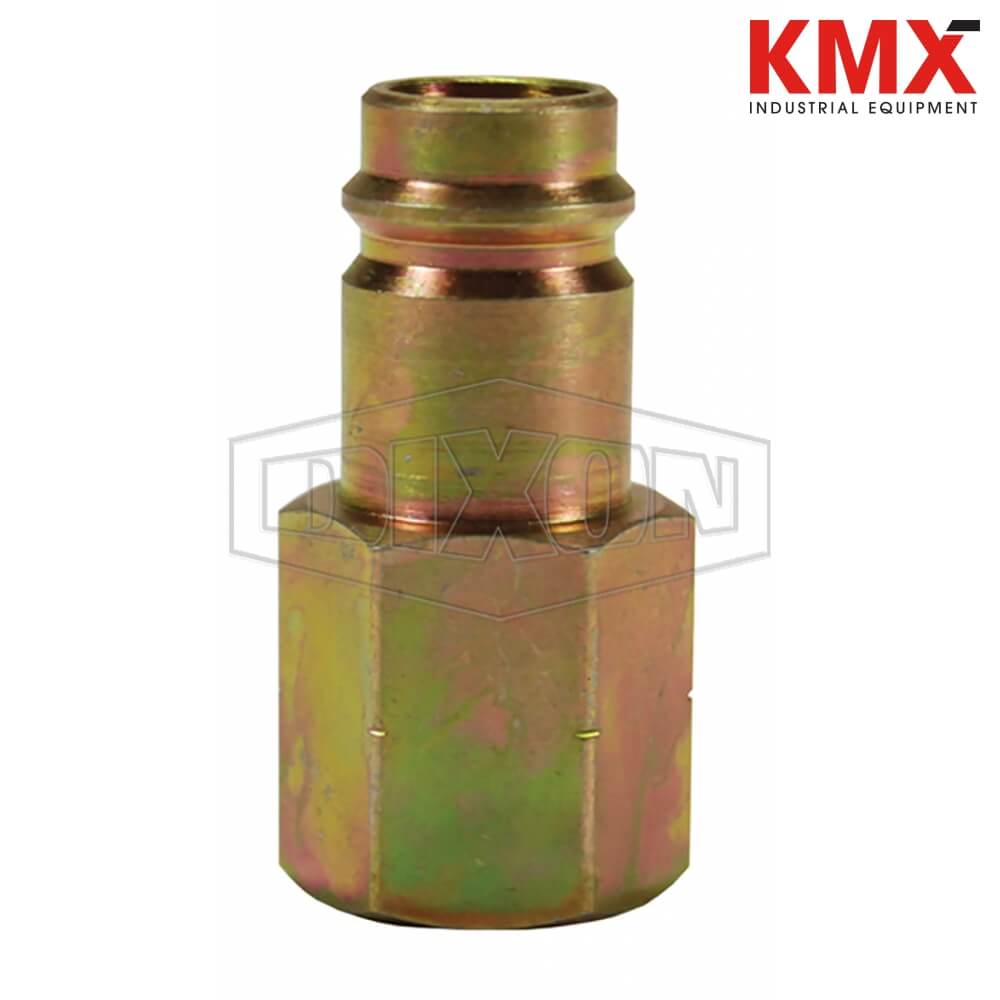

DIXON VALVE CJ3BF3 CJ-Series Pneumatic Female Threaded Plug
* Referential image

DIXON VALVE
CJ-SERIES PNEUMATIC FEMALE THREADED PLUG
SKU :  10113 BRAND : DIXON VALVE MODEL :  CJ3BF3
Specifications:
Rated pressure for connected Brass Coupler & Steel Plug: 300 PSI (20 bar) Maximum Working and 8,000 PSI (552 bar) Burst

Construction:
Machined components are manufactured using solid steel bar stock.
Steel componentry is plated using ROHS Compliant Trivalent Chrome.

Compatibility & Interchange Data:
European High-Flow Interchange
Interchanges with Rectus 27KA, CEJN 410 and other like designs

Safety notes:
It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov
PDF
TECHNICAL SPECIFICATIONS
1Body Size3/8"
2Factory Part NumberCJ3BF3
3Hex7/8"
4Length1.50" (38.0mm)
5MaterialSteel
6Maximum OD1.01" (25.7mm)
7Pressure RatingSee Product Details
8Temperature Range-40°F to +250°F (-40°C to +121°C)
9ThreadBSPP
10Thread Size3/8"
11Weight Lb0.1500
** Some features may vary without prior notice. Sale subject to inventory availability
