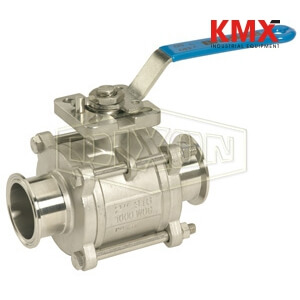

SKU :  9640 BRAND : DIXON VALVE MODEL :  BV2CV-150CC-A

Specifications:
Break torque: 238 in. lbs.

Features:
Balanced encapsulated construction minimizes cold flow
Live-loaded stem packing
Precision stainless steel balls reduce torque and friction losses while extending seat life
Lockable handle can prevent accidental actuation
Standard internal entry blow out proof stem design
Full port design matches ball and seat ports to tube ID for lower pressure drop and less turbulent flow
Compact design for areas with tight space restrictions

Construction:
Virgin polytetrafluoroethylene seal, Food Grade Material: Ideal for most sanitary services. Specified for applications requiring a low co-efficient of friction.
ID polish is Rₐ 32 minimum
Fully encapsulated construction produces bubble tight seal
Integral ISO 5211 mounting pad
CF8M stainless body, ends and ball

Available Options:
Identification tagging available
304 Stainless steel stem extension available for all sizes when you need distance from insulated lines or need to dissipate heat or cold in your process between the valve and the handle or actuator. Standard extension is 4", but other lengths can be quoted as specials.
Weld ends available see BV2CV-XXXBB-A
