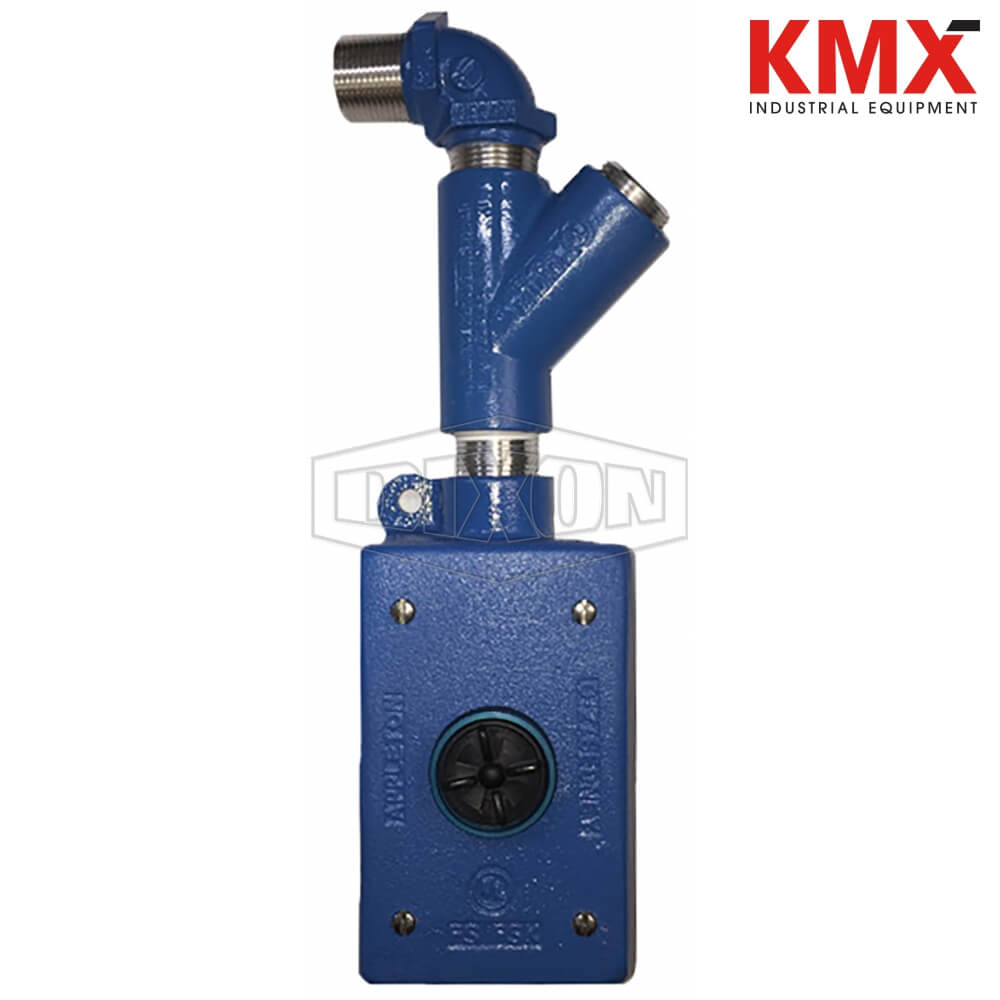

SKU :  23002 BRAND : DIXON VALVE MODEL :  A210PZH-24

Applications:
Shutdown system for tank cars, tank trucks, barges and ships, suitable for open and closed dome

Specifications:
Sensor suitable for Class I, II, III, Div 1, Groups A, B, C and D when used with supplied controller and cable lengths of 10,000' or less
Cable connectors designed for repeated mating meet IP 65 mechanical and environmental specifications

Features:
Rugged, explosion proof, weather, chemical and corrosion resistant
LED status lights visible through glass cover
Inserts into tank through standard 1/2" NPT fitting
Probe can be portable or permanently installed in the vessel
Laser engraved graduated rod with 1/4 graduations
Probe-to-controller cable protected by stainless steel interlocking armor sheath and heavy duty latching connectors at both ends
Fail safe design, unit trips in the event of an open or shorted cable or loss of power
Controller housing NEMA 4X, Nema 7, Explosion Proof, Class I, II, Groups B, V and D
Choice of capacitance, conductivity, ultrasonic, temperature or float sensors
Output relay contacts 2 form C (2PDT) rated 2 amps at 120/240 VAC, 1 form C (SPDT) with optional latching circuit and reset switch
Output relay de-energizes on high level, broken or shorted sensor cables or loss of power
Sensor excitation open circuit voltage 8 VDC, short circuit current 8MA with built-in FM approved barrier

Construction:
Wetted materials: 316 stainless steel and PTFE standard, other materials available

Available Options:
Insertion lengths 4" to 60" standard, other lengths available
Input power: 120 VAC, 240 VAC or 24 VDC, 2.5 watts
Standard cable lengths: 15', 25' and 50', other lengths available
Optional self test feature, tilt and ground verification interlocks and latching circuit available
