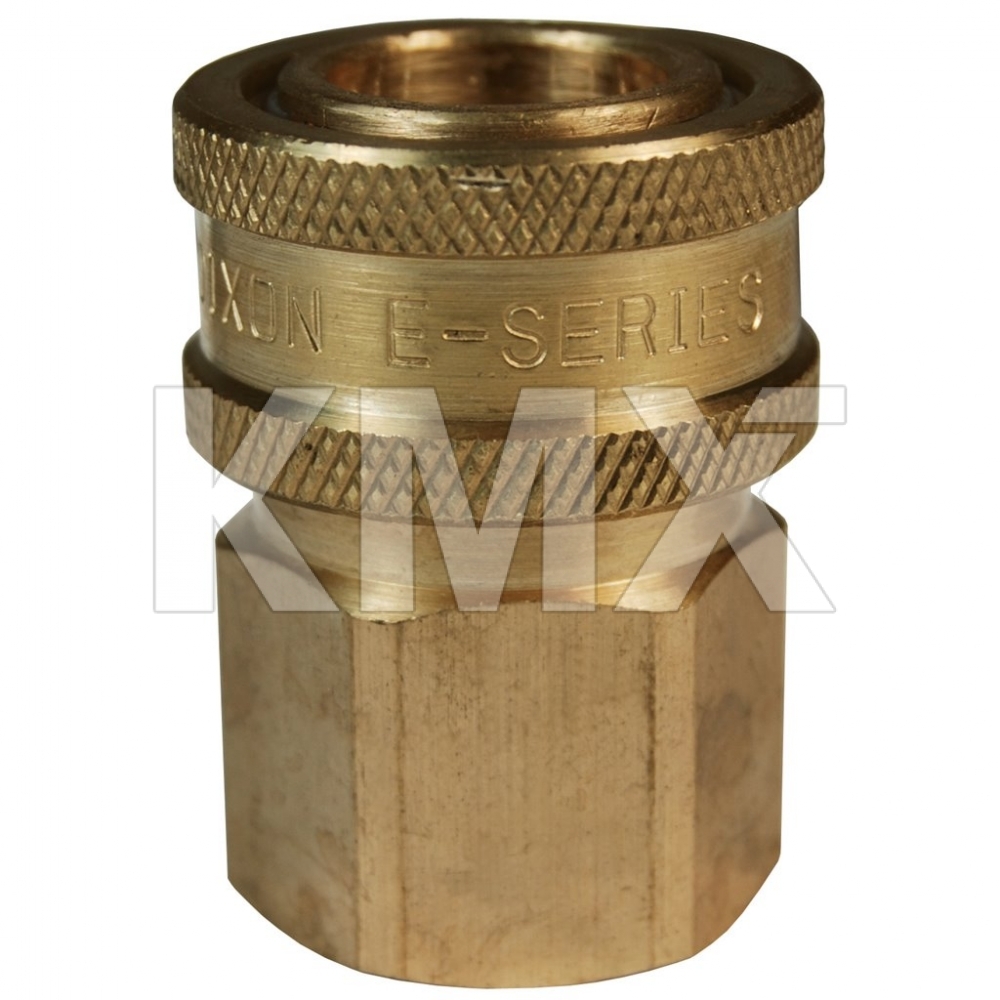

SKU :  4900 BRAND : DIXON VALVE MODEL :  4EBF4-B

Specifications:
Rated pressure for connected Brass Coupler and Brass Plug: 2400 PSI (166 bar) Maximum Working and 9700 PSI (669 bar) burst
Rated pressure for connected Brass Coupler and 303 Stainless Steel Plug: 3500 PSI (241 bar) Maximum Working and 14000 PSI (966 bar) burst

Features:
Straight-Through Pressure-Wash Interchange
Interchanges with Parker ST, Foster FST, Hansen ST, and Tomco ST couplings
These couplers have no internal valves, providing maximum flow with minimum pressure drop.

Construction:
Machined components are manufactured using solid brass
Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life.
Nitrile (Buna-N) seals are standard

Available Options:
Contact Dixon® for additional seal material options, pressure ratings and other technical information.

Safety notes:
Do Not Disconnect with pressure in line.
Dixon cannot assume liability for misapplication of products resulting in equipment down-time, lost production, property damage and/or personal injury including death.
WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov
