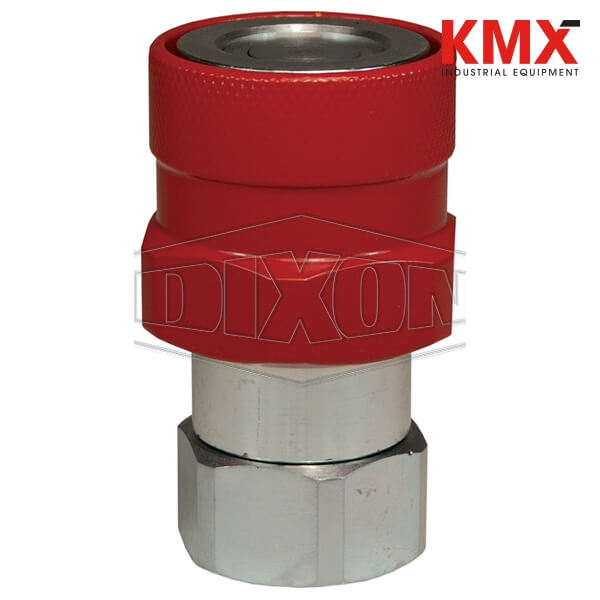

SKU :  22467 BRAND : DIXON VALVE MODEL :  3VEPF3-BOP

Applications:
Designed specifically for blow-out preventer systems on drilling rigs

Specifications:
BOP couplings have been fire tested and Lloyd's certified to 700°C (1300°F) in accordance with API 16D. Certificate available upon request.
Maximum Impulse Pressure: 8000 PSI (55 MPa)
Burst Pressure Connected: 22000 PSI (152 MPa)
Burst Pressure Coupler: 18000 PSI (124 MPa)
Maximum Pressure Connect & Disconnect: 4500 PSI (31 MPa)
Lloyd's Test Pressure: 5,000 PSI

Construction:
Machined components are manufactured using solid steel bar stock
Stainless steel retaining rings and springs maximize corrosion resistance and extend service life.
Steel components are plated using ROHS Compliant Zinc Nickel
Red powder coated components and external O-rings for easy BOP service identification
Blow-out Preventer (BOP) coupling critical seals are severe service FKM
PTFE Anti-Extrusion ring protects main coupling valve seal from dynamic impulse pressure damage

Compatibility & Interchange Data:
Stucchi VEP/VEP-HD Series
DNP FSI-BOP Series

Note:
Rated Flow ∆P=21.75 PSI
