DIXON VALVE
DIXON VALVE 2FF2-B-BS F-Series Pneumatic Manual Female Threaded Coupler

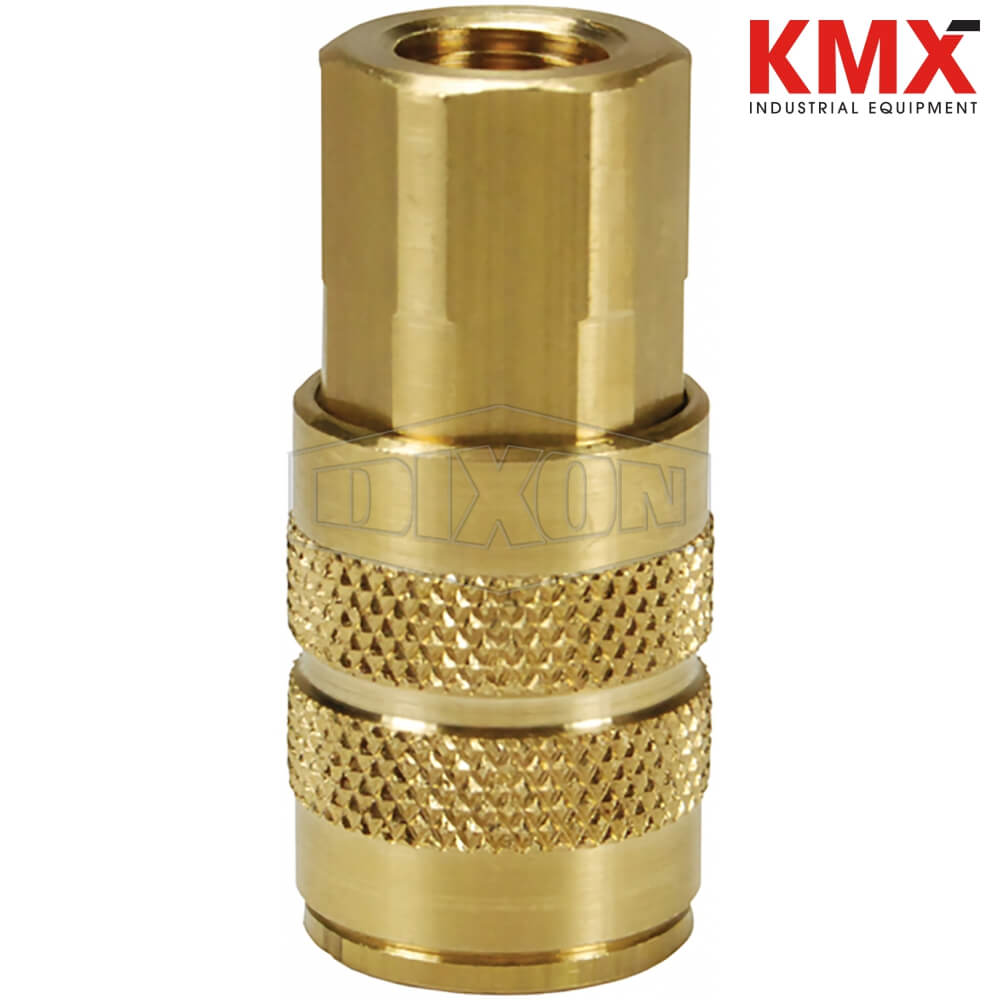

* Referential image

DIXON VALVE
F-SERIES PNEUMATIC MANUAL FEMALE THREADED COUPLER
SKU :  3081 BRAND : DIXON VALVE MODEL :  2FF2-B-BS
Specifications:
Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 8,500 PSI (586 bar) Burst
Rated pressure for connected Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 9,000 PSI (620 bar) Burst

Construction:
Machined components are manufactured using solid bar stock.
Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
Nitrile (Buna-N) seals are standard
Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Brass sleeve and steel tubular valve

Compatibility & Interchange Data:
Foster 3, 4, 5 and 6 Series
Parker 20-Series Manual Interchange
Hansen 1000, 400 and 500

How it works:
To disconnect, begin by holding the hose on the nipple side with three of your fingers, leaving your thumb and index finger free.
Grab the sleeve with your thumb and index finger and begin to pull the sleeve towards the palm of your hand.
After pulling the sleeve, the nipple will move out of the coupler slightly. Continue to hold the hose and coupler sleeve until all air is fully exhausted.
After the line is fully exhausted, you are able to safely separate the nipple from the coupler.

Safety notes:
It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov
PDF
TECHNICAL SPECIFICATIONS
1Body Size1/4"
2Hex3/4"
3Length2.07" (52.6mm)
4MaterialBrass
5Maximum OD0.93" (23.5mm)
6Factory Part Number2FF2-B-BS
7Pressure RatingSee Product Details
8Temperature Range-40°F to +250°F (-40°C to +121°C)
9ThreadNPTF
10Thread Size1/4"
11Weight Lb0.2400
** Some features may vary without prior notice. Sale subject to inventory availability
